- Country
- United States of America (USA)
- Manufacturer / Brand
- Ware Mfg. Corporation (Ware Radio Corp.); New York NY
- Year
- 1931
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 64819
-
- Brand: Music Master

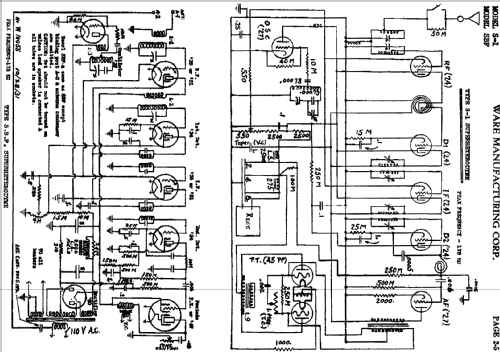

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz; Screengrid 1926-1935
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: S-1 S1 - Ware Mfg. Corporation Ware
- Notes
- Push-pull af output stage; unknown rectifier circuit.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 2 = 1932 (Models 1931/1932)
- Other Models
-
Here you find 27 models, 11 with images and 14 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Ware Mfg. Corporation (Ware Radio Corp.); New York NY
