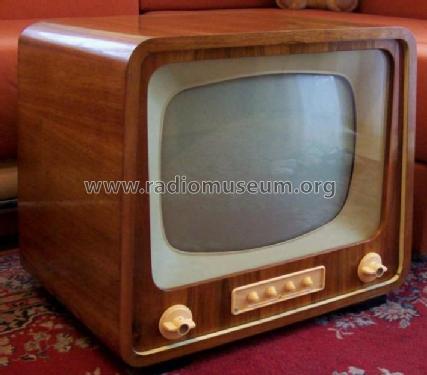

Szmaragd 901 OT1791
Unitra WZT, Warszawskie Zaklady Telewizyjne, Warszawa (Warschau).
- Country
- Poland
- Manufacturer / Brand
- Unitra WZT, Warszawskie Zaklady Telewizyjne, Warszawa (Warschau).
- Year
- 1961 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 86175
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 17
- Valves / Tubes
- PCC84 PCF82 EF80 EF80 EF80 PCL84 EF80 PCF82 PL841 PCF82 EF80 PCL82 PCF82 PL36 PY81 EY86 AW43-80
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Szmaragd 901 OT1791 - Unitra WZT, Warszawskie
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 540 x 470 x 400 mm / 21.3 x 18.5 x 15.7 inch
- Notes
- OIRT Standard VHF Tuner.
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by a member from A. See "Data change" for further contributors.
