• Country
• United States of America (USA)

• Manufacturer / Brand
• Warwick Mfg. Corp., Chicago (Clarion)

• Year
• 1940 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166764

• • alternative name: Templeton

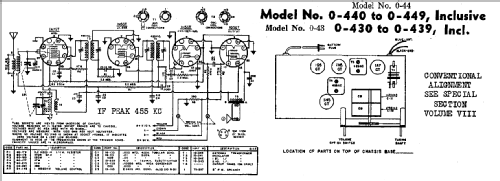

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1A7GT 1N5GT 1H5GT 1Q5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 90 & 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 0-445 - Warwick Mfg. Corp., Chicago

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 17.75 x 14 x 8.125 inch / 451 x 356 x 206 mm

• Circuit diagram reference
• Rider's Perpetual, Volume 11 = ca. 1940 and before

• Literature/Schematics (1)
• Riders 11-2

• Literature/Schematics (3)
• Clarion Folder.

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
