11801 (V)
Warwick Mfg. Corp., Chicago (Clarion)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Warwick Mfg. Corp., Chicago (Clarion)
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 64912
-
- alternative name: Templeton

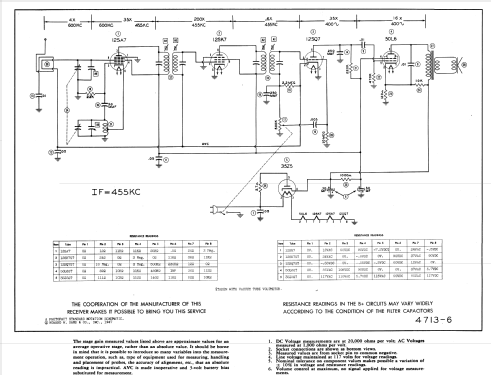

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 11801 - Warwick Mfg. Corp., Chicago
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 9 x 6.25 x 5.25 inch / 229 x 159 x 133 mm
- Notes
- Photofact see under Trade name: Clarion. Tuning 530 to 1630 kc. Color= ivory. Other colors at $17.95.
- Price in first year of sale
- 19.95 $
- External source of data
- Ernst Erb
- Source of data
- The Radio Collector's Directory and Price Guide 1921 - 1965
- Circuit diagram reference
- Rider's Perpetual, Volume 17 = 1948 and before
- Mentioned in
- Radio Retailing (Radio & Television R.) (July 1947 page 40. September 1947 page 32.)
- Literature/Schematics (1)

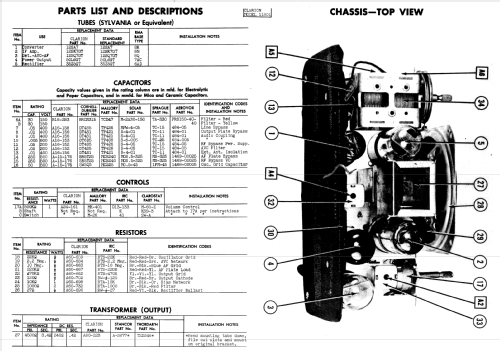

- Photofact Folder, Howard W. SAMS (Set 23, Folder 4713-6)
