• Country
• United States of America (USA)

• Manufacturer / Brand
• Warwick Mfg. Corp., Chicago (Clarion)

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 65015

• • alternative name: Templeton

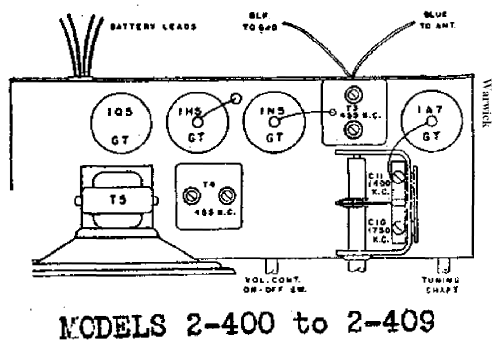

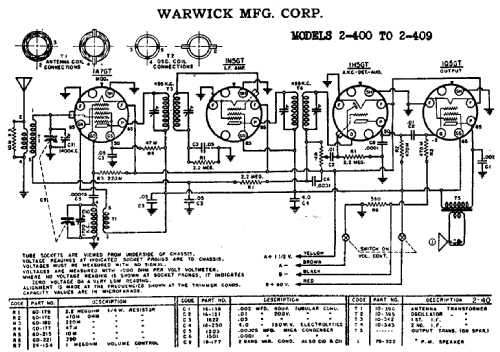

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1A7GT 1N5GT 1H5GT 1Q5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 90 & 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Troubador 2-401 - Warwick Mfg. Corp., Chicago

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12.875 x 7.125 x 7 inch / 327 x 181 x 178 mm

• Notes

• New 1.4 volt tubes, AVC, P.M. dynamic speaker, operates on single AB pack or separate A & B batteries, tuning range: 540-1630 kc.
  Details about the whole family of Troubador's see here.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before

• Literature/Schematics (1)
• Riders 13-5, 10

• Literature/Schematics (3)
• -- Original prospect or advert (The Warwick Troubador Folder.)
