• Country
• United States of America (USA)

• Manufacturer / Brand
• Warwick Mfg. Corp., Chicago (Clarion)

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 65207

• • alternative name: Templeton

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SQ7 6K6 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Clarion C-103 The Aristocrat - Warwick Mfg. Corp., Chicago

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12.875 x 8.375 x 7.625 inch / 327 x 213 x 194 mm

• Notes

• Photofact see under Trade name: Clarion. A table model in ivory or walnut plastic. Extra large dynamic speaker. "Super-Interceptor" loop antenna. Tunes 540 to 1725 kc.
  This radio model Clarion C103 from Warwick Mfg. is identical to the Clarion C103A in appearance, however, the radio back indicates  a C103. The schematics are also different



• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference

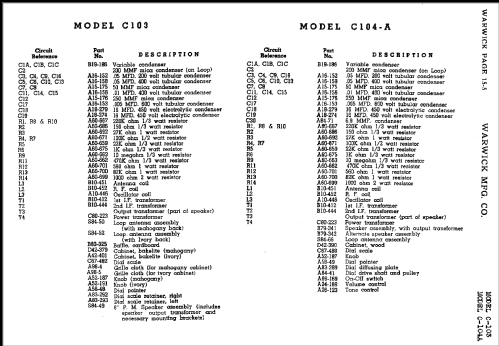

• Rider's Perpetual, Volume 15 = 1947 and before

• Mentioned in

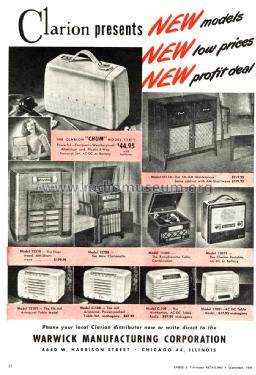

• Radio Retailing (Radio & Television R.) (January 1946 p.102. March 1946 p.119. July 1946 p.50. September 1947 p.32.)

• Literature/Schematics (1)

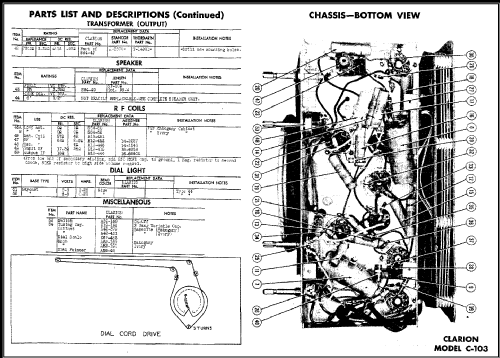

• Photofact Folder, Howard W. SAMS (Dat 10-46, set 9, folder 466-6)

• Literature/Schematics (3)
• Clarion Folder Form 102 for 1946.
