Clarion C-108 The Range-Master
Warwick Mfg. Corp., Chicago (Clarion)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Warwick Mfg. Corp., Chicago (Clarion)
- Year
- 1946
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 93810
-
- alternative name: Templeton

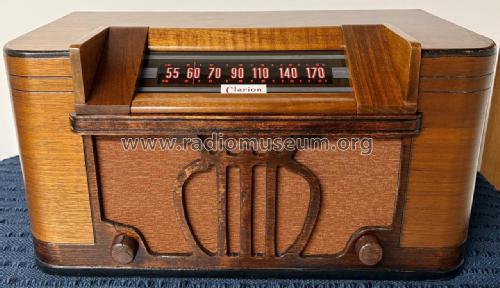

Picture courtesy of Karen and Ron Rembold
Picture courtesy of Karen and Ron Rembold
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 90 / 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Clarion C-108 The Range-Master - Warwick Mfg. Corp., Chicago
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 18.25 x 9.75 x 0 inch / 464 x 248 x 0 mm
- Notes
-
Photofact see under Trade name: Clarion.
- Circuit diagram reference
- Rider's Perpetual, Volume 15 = 1947 and before
- Mentioned in
- Beitman Radio Diagrams, Vol. 06, 1946
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Dat 10-46, set 5, folder 465-8)
- Literature/Schematics (2)
- Radio Retailing (Radio & Television R.) (January 1946 page 103.)
- Literature/Schematics (3)
- Clarion Folder Form 102 for 1946.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
- Other Models
-
Here you find 472 models, 77 with images and 435 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Warwick Mfg. Corp., Chicago (Clarion)
Collections
The model Clarion C-108 is part of the collections of the following members.
Forum contributions about this model: Warwick Mfg. Corp.,: Clarion C-108 The Range-Master
Threads: 1 | Posts: 1
Howdy: Downloaded the posted schematic; and C1B and C1A are mixed up in alignment: use C1A for the adjustment of C1B. on the variable condenser. That was the way I had to get mine to work. Thanks.
Milt Broeckel, 22.Mar.14
