Phonola 2663A

Waters Conley Company, Inc., Rochester MN

Data
Forum
Pictures
Collections

  • Year
  • 1960 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 223574

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     7 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 60 to 70 Watts, 60 cycles, 117 = 105 - 125 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: Phonola 2663A - Waters Conley Company, Inc.,
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

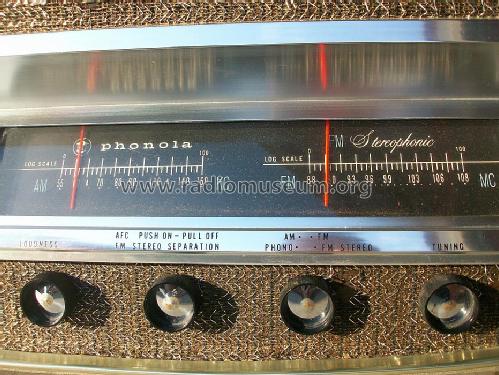

  • The Waters Conley Model Phonola 2663A is a 10-tube AC operated AM-FM Radio and Stereo Phono Amplifier with 4 Speed Automatic Record Changer. There are several variants: Phonola 2663, 2663A and at least also 2663C (probably also a "B"). The photofact schematic is for the models 2662, 2663, 6062 and 3162 of which at least the 3062 is a big console radio, probably also the model 3162. Tuning range broadcast is 540 to 1645 kHz, FM 88 to 108 MHz.
    Tube functions: 6AQ8/ECC85 FM RF- FM conv., 6BE6 AM conv., 6BJ6 1st AM-FM IF, 6BJ6 2nd FM IF, 12AT7 MPX input amp - 19kHz Osc doubler, 12AU7A MPX det-amp, 12AX7A AF amp (2 channels), 2 x 6AQ5A output (2 channels), 6CA4 rectifier. Diodes for ratio detector and FM AFC. Two 4" speakers and two 10" speakers.

  • External source of data
  • Guest Jason Driver, Wylie, LN, USA.
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
