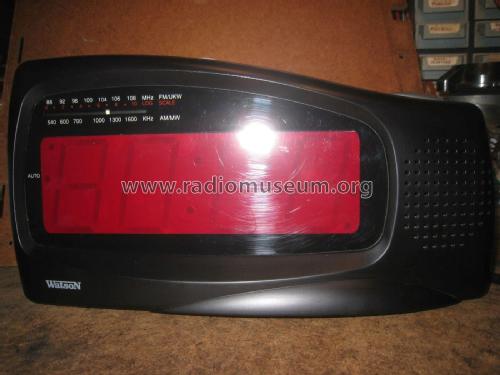

Radiosveglia AM/FM UR 4510
Watson (Marke / brand)
- Country
- Germany
- Manufacturer / Brand
- Watson (Marke / brand)
- Year
- 1990 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 285239
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 230 & for clock backup 6LR61: 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
- Power out
- 0.1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Radiosveglia AM/FM UR 4510 - Watson Marke / brand
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 240 x 120 x 70 mm / 9.4 x 4.7 x 2.8 inch
- Notes
-
WATSON Radiosveglia AM/FM mod. UR 4510 - grandi dispay digitali frontali - controllo volume - commutatore dimmer hi/lo - commutatore am/fm - commutatore on/off/auto/buzz-tasti sleep/time/hour/min/alarm/snooze - frequenza AM: 520/1605 - FM: 87,5/108 - consumo 6 watt - pila tampone da 9 v -
Made in China
- Net weight (2.2 lb = 1 kg)
- 0.420 kg / 0 lb 14.8 oz (0.925 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
