World Multi Band TR4306
Watson (Marke / brand)
- Country
- Germany
- Manufacturer / Brand
- Watson (Marke / brand)
- Year
- 1988 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 328092
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, more than 2 SW bands plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / AA: 2 x 1,5 Volt
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

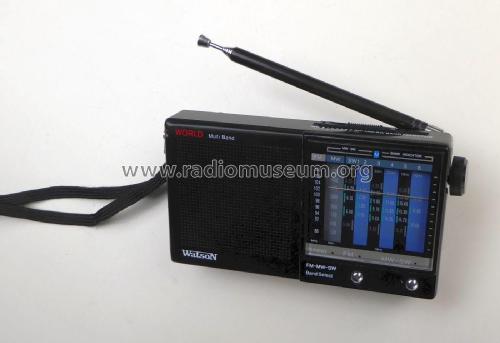

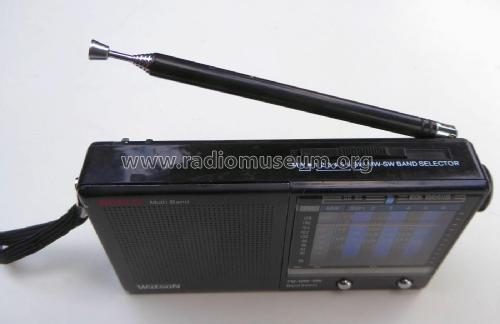

- Model: World Multi Band TR4306 - Watson Marke / brand
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 130 x 70 x 25 mm / 5.1 x 2.8 x 1 inch
- Notes
-
Watson Multi Band Word Receiver TR4306, Taschenradio, MW, 6 x KW, UKW, mit Trageschlaufe.
KW Bänder: 49, 41, 31, 25, 19 und 16 m Band
Siehe auch Tristar (Kaufhalle) Multi Band World Receiver TR4306
und auch International World Receiver Multi Band WR-688
- Author
- Model page created by Matthias Buhl. See "Data change" for further contributors.
