• Country
• Italy

• Manufacturer / Brand
• Watt Radio; Torino

• Year
• 1938/1939 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98187

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6NK7 6Q7 6V6 6X5

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

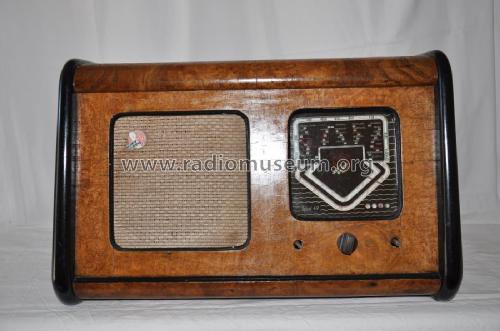

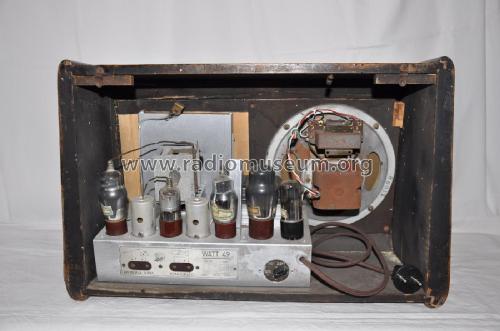

• Model: 49 - Watt Radio; Torino

• Shape
• Tablemodel, low profile (big size).

• Notes
• OC1 = 37 - 50 m, OC2 = 18 - 37 m (OC = SW).

• Literature/Schematics (1)
• Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 387)
