- Country
- Italy
- Manufacturer / Brand
- Watt Radio; Torino
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 98192

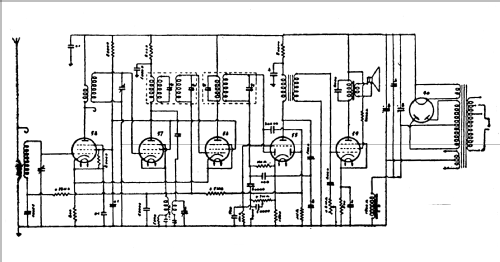

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 175 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 659 - Watt Radio; Torino
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
Controllo di tono. Ingresso per giradischi.
Questo apparecchio con una piccola modifica dello schema diventava "Duofono" con 2 altoparlanti elettrodinamici.
- Source of data
- -- Schematic
- Mentioned in
- -- Schematic (Schemario degli Apparecchi Radio. D.E. Ravalico – Hoepli – 1944.)
