• Country
• Italy

• Manufacturer / Brand
• Watt Radio; Torino

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98631

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 6K6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

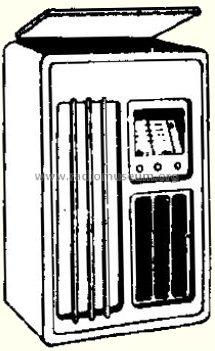

• Model: Super Stella Fono Prima serie - Watt Radio; Torino

• Shape
• Console with any shape - in general

• Source of data
• Guida Pratica Antique Radio II (2000)

• Literature/Schematics (1)
• -- Schematic
