• Country
• Italy

• Manufacturer / Brand
• Watt Radio; Torino

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 98632

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8 6K7 6Q7 6V6 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super Stella Seconda serie - Watt Radio; Torino

• Shape
• Tablemodel, low profile (big size).

• Notes

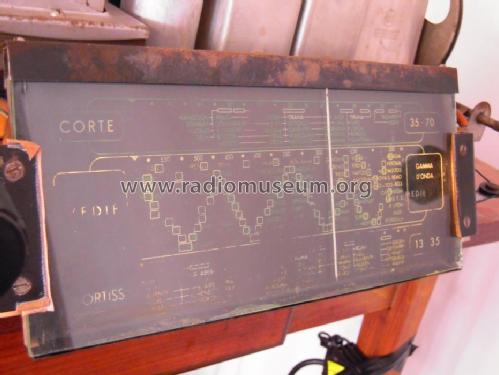

• Onde Medie190-560 metri, Corte 35-70 metri e Cortissime 18-35 metri.

• Mentioned in
• -- Schematic

• Literature/Schematics (1)
• Il Radio Libro (E.D. Ravalico) Edizioni Hoepli (VI edizione 1942)
