Televisore 3800
Watt Radio; Torino
- Country
- Italy
- Manufacturer / Brand
- Watt Radio; Torino
- Year
- 1966 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 345075

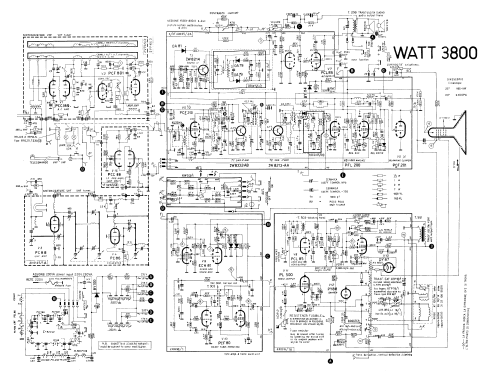

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- PCC189 PCF801 PCC88 PC88 PC86 PCF201 PCL86 PFL200 ECH81 PCF80 PCL85 PL500 PY88 DY87 A65-11W or 23DGP4
- Number of Transistors
- 3
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- from Radiomuseum.org
- Model: Televisore 3800 - Watt Radio; Torino
- Notes
-
Televisore in bianco/nero con VHF e UHF. Cinescopio con deflessione 110°. Veniva costruito con cinescopio da 25 pollici A65-11W oppure da 23 pollici 23DGP4.
- Mentioned in
- -- Schematic (“Televisori Commerciali” E. Costa U. Hoepli editore, 1966.)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
