Transval WR-265
Watt Radio; Torino
- Country
- Italy
- Manufacturer / Brand
- Watt Radio; Torino
- Year
- 1963/1964
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 170069

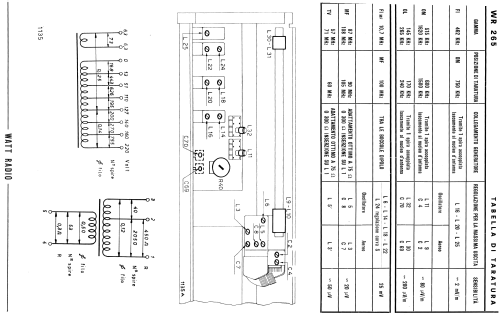

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

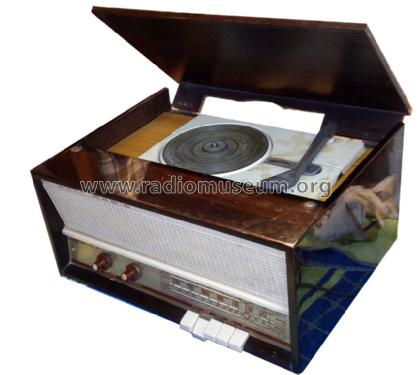

- Model: Transval WR-265 - Watt Radio; Torino
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 430 x 210 x 160 mm / 16.9 x 8.3 x 6.3 inch
- Notes
- Inusuale circuito con alta frequenza a transistor e bassa frequenza a valvole, il tutto alimentato da valvola raddrizzatrice (anche i transistors).
Unusual circuit with transistors in RF and IF stages and tubes as audio amplifier and rectifier. The rectifier tube provide also transistors power supply.
- Net weight (2.2 lb = 1 kg)
- 4.5 kg / 9 lb 14.6 oz (9.912 lb)
- Price in first year of sale
- 37,900.00 ITL
- Source of data
- Guida Pratica Antique Radio III (2000)
- Literature/Schematics (1)
- Annuario ANIE 1963-64
- Author
- Model page created by Enrico Bonisolo. See "Data change" for further contributors.
