• Country
• Italy

• Manufacturer / Brand
• Watt Radio; Torino

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142073

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 6BA6 6T8 EM80 EL84 EZ81

• Main principle
• Superheterodyne (common); ZF/IF 470/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Wired Wireless Receiver (RF!)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 140; 160; 220; 260 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

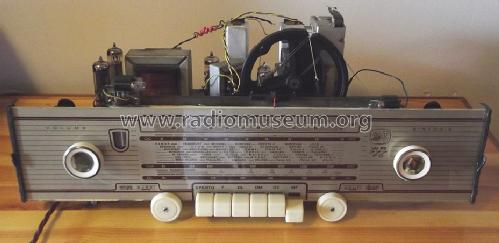

• Model: WR 777 FD - Watt Radio; Torino

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 534 x 325 x 240 mm / 21 x 12.8 x 9.4 inch

• Notes

• Differisce dal mod. Fonetto WR777FD per non aver il giradischi.

  Oltre alle gamme d'onda presenti la radio possiede anche la Filodiffusione selezionabile nella scala della sintonia delle OL.

  Altoparlante ellittico frontale di dimensioni 210 mm x 150 mm.

  Due altoparlanti laterali circolari per toni acuti (con filtro passa-alto) di circa 90 mm di diamentro.

  Mobile impiallacciato di legno, verniciato al poliestere catalizzato e rifinito a specchio.

• Source of data
• Guida Pratica Antique Radio III (2000)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
