- Country
- United States of America (USA)
- Manufacturer / Brand
- Watterson Radio Mfg. Co., Dallas, TX
- Year
- 1951 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 65243

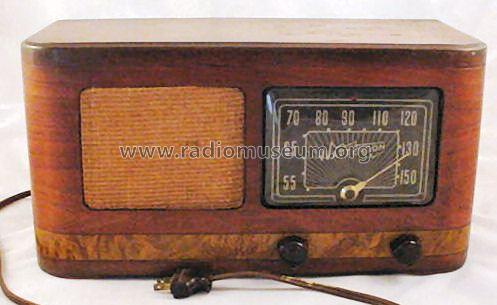

Picture courtesy of Carl Spoonamore
Picture courtesy of Carl Spoonamore
Picture courtesy of Carl Spoonamore
Picture courtesy of Carl Spoonamore

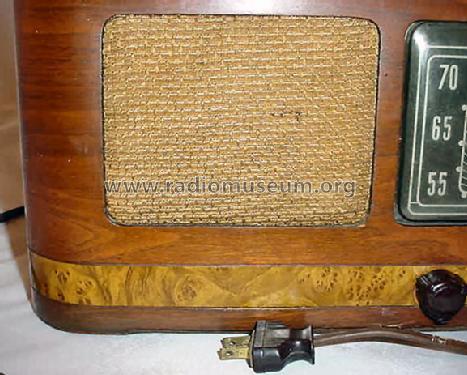

Picture courtesy of Carl Spoonamore
Picture courtesy of Carl Spoonamore
Picture courtesy of Carl Spoonamore

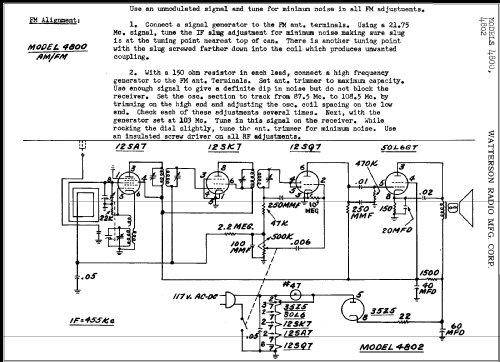

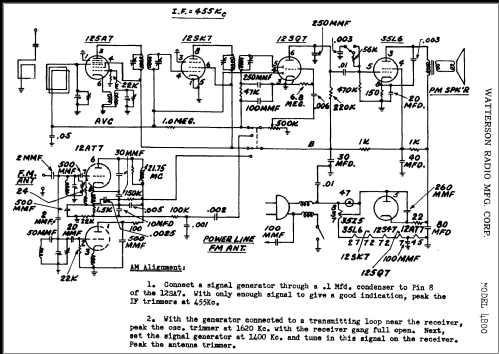

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 4802 - Watterson Radio Mfg. Co.,
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 16.4 x 8.3 x 7.5 inch / 417 x 211 x 191 mm
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 19 = 1949 and before
- Other Models
-
Here you find 62 models, 33 with images and 45 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Watterson Radio Mfg. Co., Dallas, TX
