• Country
• Great Britain (UK)

• Manufacturer / Brand
• Wayne Kerr; New Malden, England

• Year
• 1962 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 334332

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org
• Model: Frequency Convertors FC Series - Wayne Kerr; New Malden,

• Notes

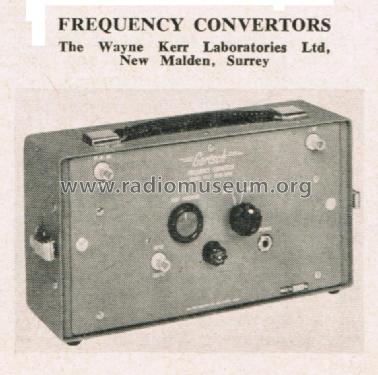

• A new Frequency Convertor for use with Wayne Kerr-Gertsch FM-6 and FM-7 frequency meters. The new FC frequency convertor extends the frequency range downwards from 20 MHz to 10 kHz.
  Three type of the frequency convertor are available: FC-1 designed for mounting in the lower compartment of FM-7. Second version is portable for use with FM-6 frequency meter. Third version is a rack-mounted version built for a standard panel 19in long and 7in high.

  All characteristics are in the uploaded original article.

• Mentioned in
• Electronic Engineering, volume 34, year 1962, September.

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
