Frequency Response Analyser & Display Store RA200 & ADS1

Wayne Kerr; New Malden, England

Data
Forum
Pictures
Collections

  • Year
  • 1978/1979
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 215065

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Frequency Response Analyser & Display Store RA200 & ADS1 - Wayne Kerr; New Malden,
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Wayne Kerr RA200 Frequency Response Analyser;
    With four channel Display Store ADS1 placed on top.
    200 Hz - 200 KHz. 12" b/w CRT.
  • Mentioned in

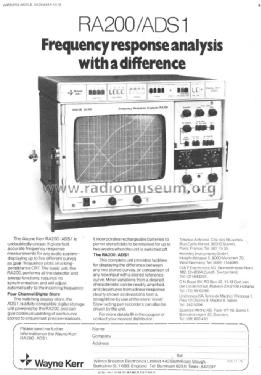

  • Advert in GB Wireless World December 1978
  • Literature/Schematics (1)
  • Funkschau (19/1979, S. 1097 - 1100)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
