Ekotape 212 Recorder
Webster Electric (Electrical) Co. (Teletalk); Racine (WI)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Webster Electric (Electrical) Co. (Teletalk); Racine (WI)
- Year
- 1955 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 123248
Sams

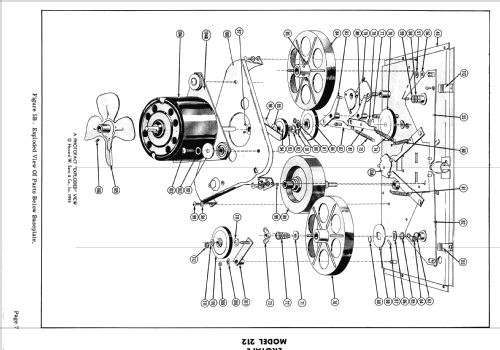

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 115V = 105 -125 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Ekotape 212 Recorder - Webster Electric Electrical Co
- Shape
- Chassis only or for «building in»
- Notes
-
Webster Ekotape Model 212 open-reel recorder is one of the components of Ekotape "Symphtone" Hi-Fi line.
Dual speed 3.75 & 7.5 ips two track tape deck for custom installation without cabinet, 5" or 7" reel.
40 to 13.000 Hz at 7.5 inches per second.
- Price in first year of sale
- 225.00 $
- Literature/Schematics (1)
- The Radio-Electronic Master, 1956 & Sams Set 301 Folder 14 12/1955
- Literature/Schematics (2)
- Photofact Folder, Howard W. SAMS (Set 301 Folder 4 dated 12-55)
- Author
- Model page created by Emilio Ciardiello. See "Data change" for further contributors.
