• Country
• United States of America (USA)

• Manufacturer / Brand
• Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)

• Year
• 1935

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 65302

• • Brand: Webcor

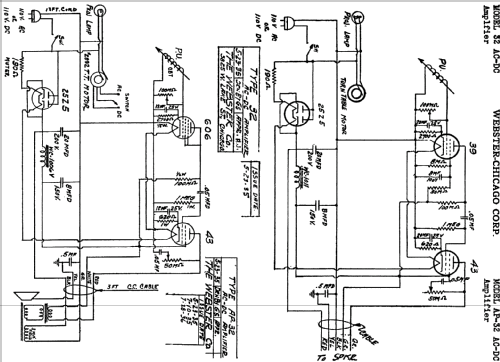

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 39 43 25Z5

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: Projectosell Amplifier 32 AC/DC - Webster Co., The, Webster-

• Notes
• Built-in projector lamp.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 13 = 1942 and before
