Holiday B-124-1
Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)
- Produttore / Marca
- Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)
- Anno
- 1953
- Categoria
- Registratore audio/video e/o riproduttore
- Radiomuseum.org ID
- 311842
-
- Brand: Webcor
- Numero di tubi
- 3
- Principio generale
- Amplificatore audio
- Particolarità
- Giradischi+AmplifBF+Altoparlant
- Tensioni di funzionamento
- Alimentazione a corrente alternata (CA) / 110 Volt
- Altoparlante
- AP magnetodinamico (magnete permanente e bobina mobile) / Ø 5 inch = 12.7 cm
- Materiali
- Pelle / stoffa / plastica ma con altro materiale sottostante
- Radiomuseum.org
- Modello: Holiday B-124-1 - Webster Co., The, Webster-
- Forma
- Soprammobile a cassapanca o cassetta, solitamente con coperchio (NON a leggio)
- Dimensioni (LxAxP)
- 9 x 19 x 14 inch / 229 x 483 x 356 mm
- Annotazioni
-

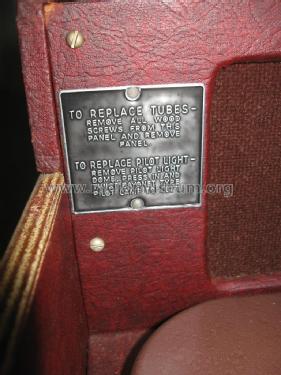

This portable phonograph was available in 2 colors. The model number B-124-1 was red and the model number F-124-1 was green. The cabinet was made of wood with a cloth type covering. There are 2 controls: one is for volume and the other is for on/off tone. There is also a pilot lamp. The record changer has 3 speeds: 33, 45 and 78 RPM.
According to Howard Sams Photofacts some models substituted a 12SJ7 tube instead of the 12SQ7 tube.
This model is similar to the Webcor B-1024-1
- Letteratura / Schemi (1)
- Photofact Folder, Howard W. SAMS (Set 203, Folder 16)
- Autore
- Modello inviato da Jon Kummer. Utilizzare "Proponi modifica" per inviare ulteriori dati.
