Record Changer 100-621 Ch= 100
Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)
- Year
- 1950 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 144565
-
- Brand: Webcor

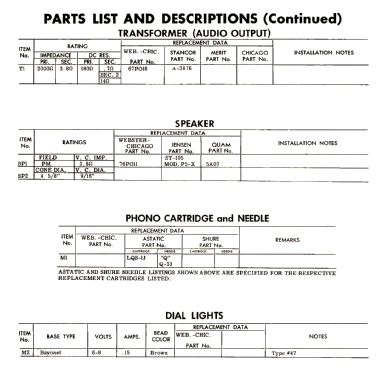

Picture from service manual.
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 4.6 inch = 11.7 cm
- from Radiomuseum.org
- Model: Record Changer 100-621 Ch= 100 - Webster Co., The, Webster-
- Shape
- Tablemodel, with any shape - general.
- Notes
-
The Webster-Chicago model 100-621 is an AC operated automatic record player with three tube amplifier .
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 11-50, Set 113, Folder 11)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
