- Country
- United States of America (USA)
- Manufacturer / Brand
- Webster Electric (Electrical) Co. (Teletalk); Racine (WI)
- Year
- 1951 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 349798

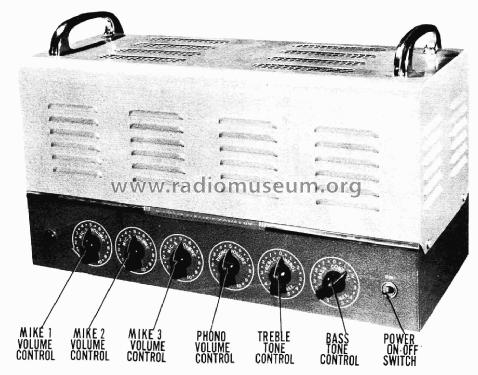

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: 82-25 - Webster Electric Electrical Co
- Shape
- Chassis only or for «building in»
- Notes
-
Webster-Electric model 82-25 is an AC operated audio amplifier.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 143, folder 15, dated 9-51)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
