- Country
- United States of America (USA)
- Manufacturer / Brand
- Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 177159
-
- Brand: Webcor

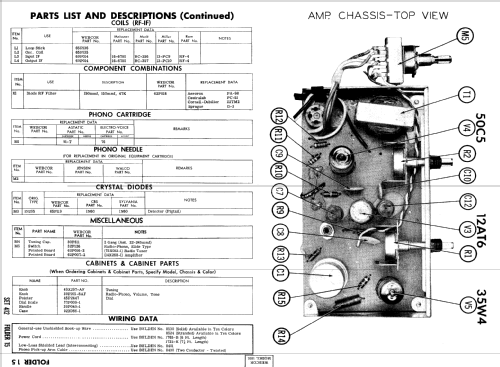

Sams Photofact Folders reference picture.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Webcor 1891 - Webster Co., The, Webster-
- Shape
- Tablemodel, with any shape - general.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 9-58, Set 412, Folder 15)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
