• Country
• United States of America (USA)

• Manufacturer / Brand
• Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)

• Year
• 1959

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 154006

• • Brand: Webcor

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AX7 35C5 35C5 35W4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 105 - 120 Volt

• Loudspeaker
• 3 Loudspeakers

• from Radiomuseum.org
• Model: Webcor 1963-1 Ch= 14X263-1 + 14X280-2 - Webster Co., The, Webster-

• Shape
• Tablemodel, with any shape - general.

• Notes
• The Webster Model Webcor 1963-1 is an AC operated 4 Tube Phono Amplifier with 4 Speed Automatic Record Changer.

• Literature/Schematics (1)

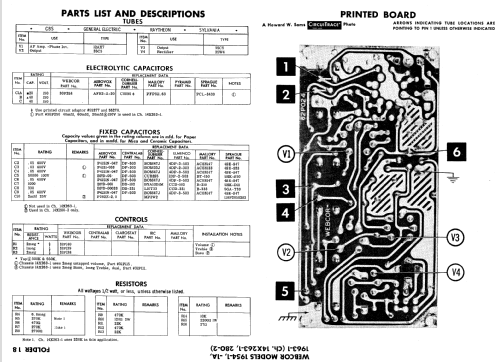

• Photofact Folder, Howard W. SAMS (Date 12-59, Set 468, Folder 18)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
