- Country
- United States of America (USA)
- Manufacturer / Brand
- Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)
- Year
- 1959
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 151732
-
- Brand: Webcor
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Webcor 2923 - Webster Co., The, Webster-
- Shape
- Tablemodel, with any shape - general.
- Notes
- The Webster Model Webcor 2923 is an AC operated mechanically 3 Speed 8 Tube stereo tape recorder.
- Literature/Schematics (1)

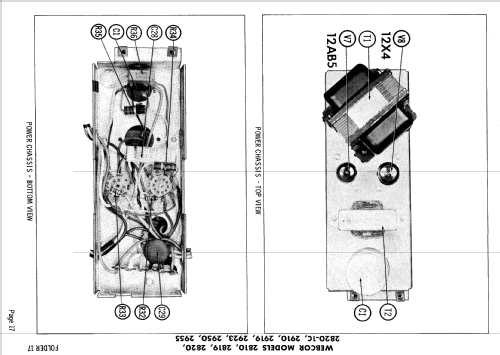

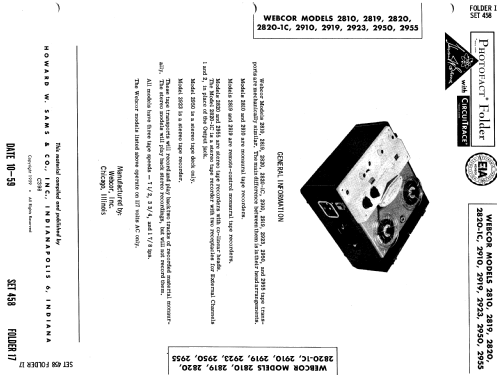

- Photofact Folder, Howard W. SAMS (Date 10-59, Set 458, Folder 17)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
