• Country
• United States of America (USA)

• Manufacturer / Brand
• Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)

• Year
• 1953 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 351504

• • Brand: Webcor

• Number of Tubes
• 6

• Valves / Tubes
• 12AX7 12AX7 6V6GT 6V6GT 6E5 6X5GT

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Various materials

• from Radiomuseum.org
• Model: Webcor AM-Radio Tape Recorder EP2791-1 - Webster Co., The, Webster-

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 16.25 x 9.75 x 17.25 inch / 413 x 248 x 438 mm

• Notes

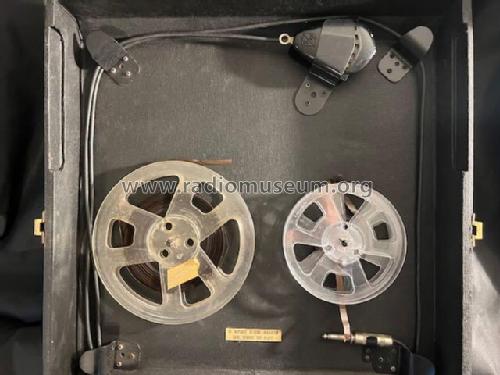

• Webcor AM Radio with reel-to-reel tape recorder.

• Net weight (2.2 lb = 1 kg)
• 42.5 lb (42 lb 8 oz) / 19.295 kg

• Author
• Model page created by Troy Brokenshire. See "Data change" for further contributors.
