Webcor BC-1895-1 Ch= 14X264-2 + 14X266-3 + 73X013-1

Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1959 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 144497
    • Brand: Webcor

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 13
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 120 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • from Radiomuseum.org
  • Model: Webcor BC-1895-1 Ch= 14X264-2 + 14X266-3 + 73X013-1 - Webster Co., The, Webster-
  • Notes
  • AC operated AM - FM tuner, phono amplifier with stereo preamplifier and 4 speed automatic record changer.

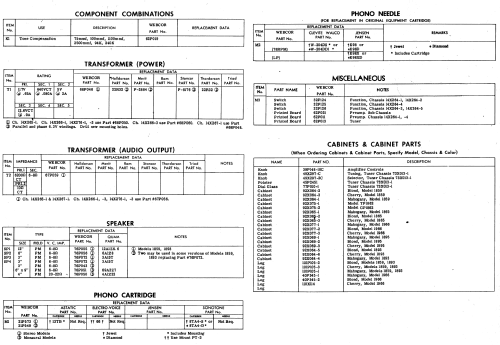

    Sams photofact set 473 folder 18 date 2-60 features the Webcor models BC-1859-1, CC- 1859-1, MC-1859-1, MC-1859-1S with preamp chassis 14X264-1 and amp chassis 14X265-1, the models TP-1862-1, GP-1862-1 with preamp chassis 14X264-4 and amp chassis 14X276-1, the models BC-1865-1, CC-1865-1, MC-1865-1 with preamp chassis 14X264-3 and amp chassis 14X266-1, the models BC-1966-1, CC-1966-1, MC-1966-1 with preamp chassis 14X264-5 and amp chassis 14X276-3, and the models BC-1893-1, CC-1893-1, MC1893-1 with preamp chassis 14X264-2, amp chassis 14X267-1 and additional tuner chassis 73X013-1, the models BC1895-1, CC-1895-1, MC-1895-1 with preamp chassis 14X264-2, amp chassis 14X266-3 and additional tuner chassis 73X013-1 as the same schematic.
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
