Webcor E-2020

• Country
• United States of America (USA)

• Manufacturer / Brand
• Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)

• Year
• 1955

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 148103

• • Brand: Webcor

• Picture
• Schematics

Previous Next

Previous Next

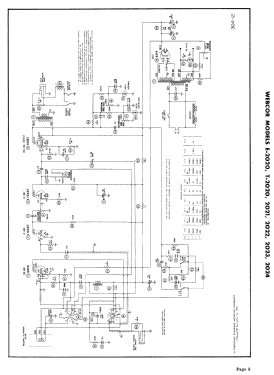

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6AV6 12AX7 6AQ5 6X4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 105 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Various materials

• from Radiomuseum.org
• Model: Webcor E-2020 - Webster Co., The, Webster-

• Shape
• Tablemodel, with any shape - general.

• Notes

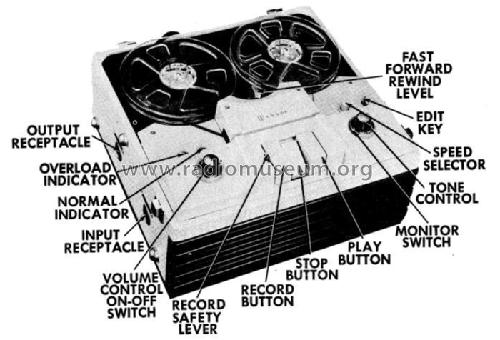

• The Webcor Model E-2020 is a 4-tube, twin track portable Tape Recorder.
  5" x 7" PM elliptical speaker; color=ebony.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 1-56, Set 304, Folder 12)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
