• Country
• United States of America (USA)

• Manufacturer / Brand
• Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)

• Year
• 1959 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 143754

• • Brand: Webcor

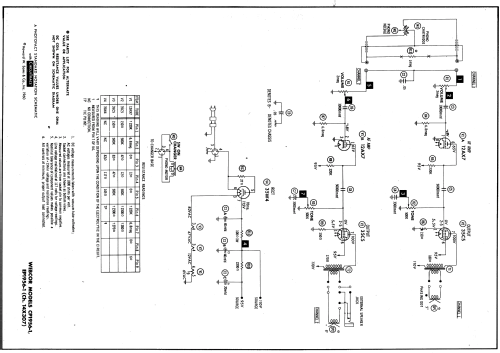

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12AX7 35C5 35C5 35W4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105 - 120 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 5 inch = 12.7 cm

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Webcor EP1956-1 Ch= 14X307 - Webster Co., The, Webster-

• Shape
• Tablemodel, with any shape - general.

• Notes
• AC operated stereo phono amplifier with 4 speed automatic record changer. Sams photofact set 476 folder 17 features date 3-60 the Wecor models CP1956-1 and EP1956-1 as the same schematic.

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 476 folder 17 date 3-60)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
