Wire Recorder 80

Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Webster Co., The, Webster-Chicago, Webcor; Chicago (IL)

Year
1945 ?

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
18975

- Brand: Webcor

Schematics

Wire Recorder 80; Webster Co., The, (ID = 20829) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 20830) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 962715) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 962716) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 962717) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 962718) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 962719) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 962720) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 962721) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 962722) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 962723) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 962724) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 962725) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 962726) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 1193885) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 1193886) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 1193887) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 1193888) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 1193889) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 1193890) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 1193891) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 1193892) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 1193893) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 1193894) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 1193895) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 1193896) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 1193897) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 1193898) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 1193899) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 1193900) R-Player — Webster Co., The, Wire Recorder 80 (3)

Wire Recorder 80; Webster Co., The, (ID = 2623390) R-Player — Webster Co., The, Wire Recorder 80 (1)
Läuft mit 220V

Wire Recorder 80; Webster Co., The, (ID = 541930) R-Player — Webster Co., The, Wire Recorder 80 (2)

Wire Recorder 80; Webster Co., The, (ID = 197460) R-Player — Webster Co., The, Wire Recorder 80 (1)

Wire Recorder 80; Webster Co., The, (ID = 814572) R-Player — Webster Co., The, Wire Recorder 80 (1)

Wire Recorder 80; Webster Co., The, (ID = 962714) R-Player — Webster Co., The, Wire Recorder 80 (2)
SAMS Photofact

Wire Recorder 80; Webster Co., The, (ID = 1009091) R-Player — Webster Co., The, Wire Recorder 80 (1)

Wire Recorder 80; Webster Co., The, (ID = 1009092) R-Player — Webster Co., The, Wire Recorder 80 (1)

Wire Recorder 80; Webster Co., The, (ID = 1009093) R-Player — Webster Co., The, Wire Recorder 80 (1)

Wire Recorder 80; Webster Co., The, (ID = 1547225) R-Player — Webster Co., The, Wire Recorder 80 (1)

Wire Recorder 80; Webster Co., The, (ID = 1549261) R-Player — Webster Co., The, Wire Recorder 80 (1)

Wire Recorder 80; Webster Co., The, (ID = 2388807) R-Player — Webster Co., The, Wire Recorder 80 (1)

Wire Recorder 80; Webster Co., The, (ID = 2940521) R-Player — Webster Co., The, Wire Recorder 80 (2)

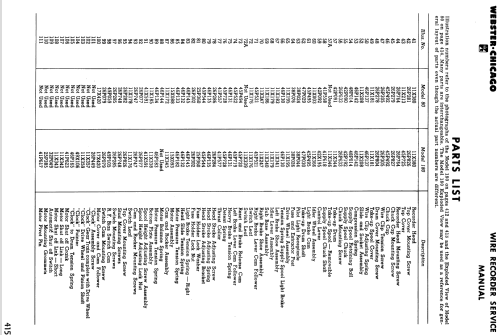

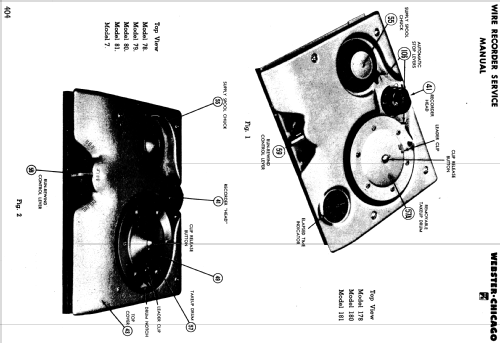

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
4

Valves / Tubes
6SJ7 6J5 6V6 6X5

Wave bands
- without

Details
Wire Recorder (or -Player)

Power type and voltage
Alternating Current supply (AC) / 105-120 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

Material
Various materials

from Radiomuseum.org
Model: Wire Recorder 80 - Webster Co., The, Webster-

Shape
Tablemodel, slant panel.

Dimensions (WHD)
440 x 180 x 290 mm / 17.3 x 7.1 x 11.4 inch

Notes
Operating frequency: 60 Hz. Power consumption 65W

Net weight (2.2 lb = 1 kg)
13.5 kg / 29 lb 11.8 oz (29.736 lb)

External source of data
E. Erb 3-907007-36-0

Circuit diagram reference
Die «Thali Schemasammlung» führt das Modell.

Literature/Schematics (1)
Rider's Perpetual, Volume 17 = covering 1947

Literature/Schematics (2)
Marconi Service Manual Volume No. 2 (Volume 2, Page 403)

Literature/Schematics (4)
Photofact Folder, Howard W. SAMS (Set 37, Date 3/48, Folder 487-26)
