• Country
• Netherlands

• Manufacturer / Brand
• Weco N.V. Radiofabriek; Amsterdam

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 178231

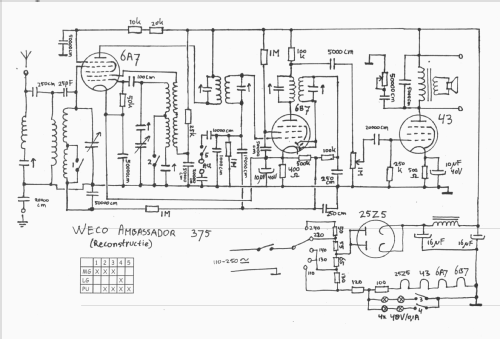

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6A7 6B7 43 25Z5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set

• Material
• Wooden case

• from Radiomuseum.org

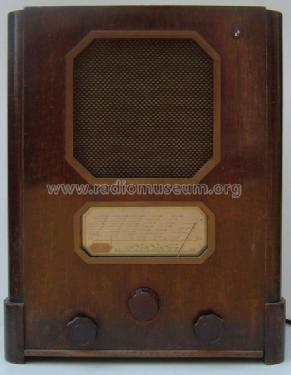

• Model: Ambassador 375 [AC-DC] - Weco N.V. Radiofabriek;

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• Made in Belgium. Medium wave: 200-550 m, Long wave: 1100-1900 m

• Mentioned in

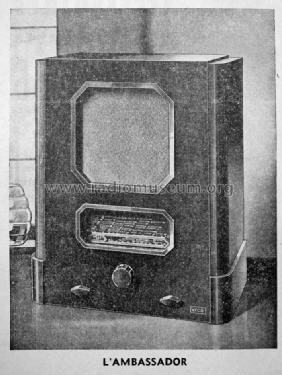

• La Radio-Industrie, oktober 1936

• Author
• Model page created by John Koster. See "Data change" for further contributors.
