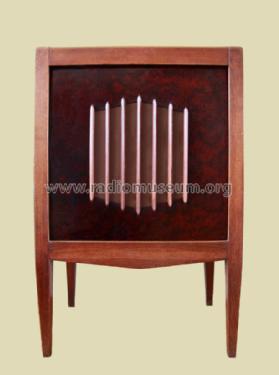

Electro-dynamische luidspreker Luxe
Weco N.V. Radiofabriek; Amsterdam
- Country
- Netherlands
- Manufacturer / Brand
- Weco N.V. Radiofabriek; Amsterdam
- Year
- 1929
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 227964
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 26 cm = 10.2 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Electro-dynamische luidspreker [Luxe] - Weco N.V. Radiofabriek;
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 480 x 760 x 325 mm / 18.9 x 29.9 x 12.8 inch
- Notes
-
Oak cabinet with Arbolite back, top and side panels. 2000 Ohms Helios Dynamus loudspeaker with separate exitation unit consisting of a Weco transformer, a Weco metal rectifier and a 2000 uF, 12 volt smoothing condenser, mounted on a board below the speaker.
In a Belgian Biedermann catalogue this AC version has number 5085. There is also a DC version with number 5084.
- Price in first year of sale
- 125.00 Hfl
- External source of data
- Belgian Weco catalogue
- Mentioned in
- Radio Wereld, The Netherlands
- Author
- Model page created by John Koster. See "Data change" for further contributors.
