- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1954 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 320715
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 473 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org

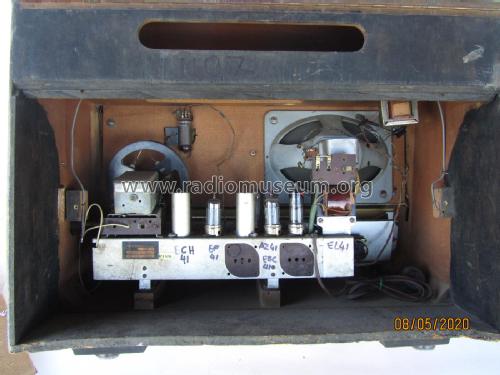

- Model: 1107 - Wega, Württembergische Radio-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 540 x 380 x 290 mm / 21.3 x 15 x 11.4 inch
- Notes
-
Wave bands: LW 850 - 2000 m, MW 185 - 580 m, SW1 35 - 120 m, SW2 15 - 35 m.
Elliptical speaker 17 x 12 cm.
- Net weight (2.2 lb = 1 kg)
- 10.2 kg / 22 lb 7.5 oz (22.467 lb)
- Author
- Model page created by Nick Alexiou. See "Data change" for further contributors.
