• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1962 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 129398

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EL84

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Superheterodyne (common); Export model

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Bakelite case

• from Radiomuseum.org

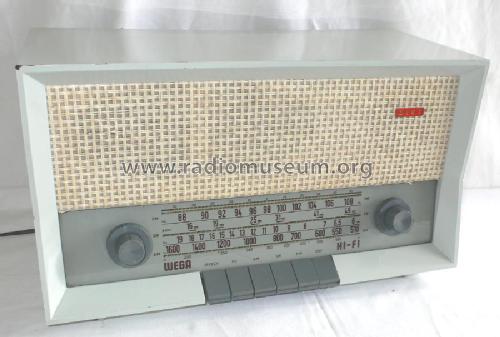

• Model: 203-A8 - Wega, Württembergische Radio-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 410 x 235 x 205 mm / 16.1 x 9.3 x 8.1 inch

• Notes

• Exportgerät, Gehäuse identisch mit Wegafox 203, jedoch ohne Langwelle. Weiterer Unterschied ist ein zusätzlicher Hochtonlautsprecher.

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
