• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1959–1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 22190

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

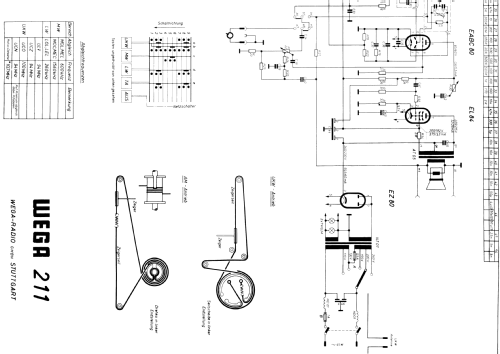

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 211 - Wega, Württembergische Radio-

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 440 x 300 x 240 mm / 17.3 x 11.8 x 9.4 inch

• Notes
• UKW 87 bis 100 MHz, LW 750 bis 2070 m, MW 185 bis 588 m.

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Price in first year of sale
• 199.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61
