- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1961–1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 23878
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart
Zierleiste fehlt.

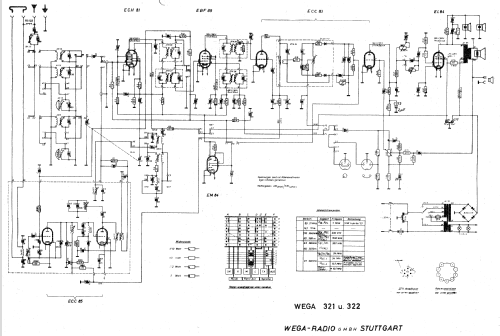

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 155; 220; 240 Volt
- Loudspeaker
- 3 Loudspeakers
- Power out
- 5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 321 - Wega, Württembergische Radio-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 570 x 340 x 270 mm / 22.4 x 13.4 x 10.6 inch
- Notes
- Dioden: 2× OA172. Dreh- und abschaltbare Ferritantenne.
- Net weight (2.2 lb = 1 kg)
- 12 kg / 26 lb 6.9 oz (26.432 lb)
- Price in first year of sale
- 339.00 DM
- External source of data
- Erb
- Source of data

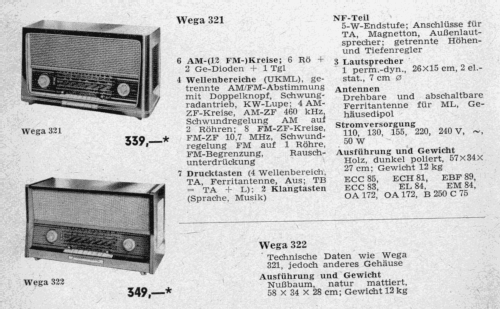

- HdB d.Rdf-& Ferns-GrH 1961/62
