603M (Export USA)
Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1963
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 203405
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart

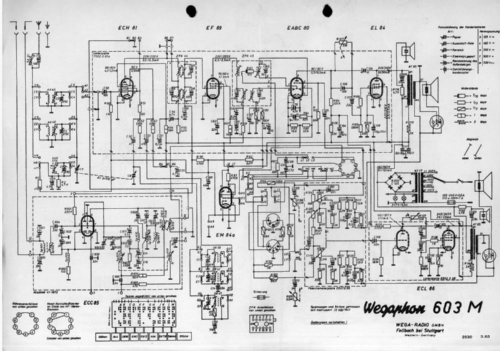

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 603M - Wega, Württembergische Radio-
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 990 x 760 x 365 mm / 39 x 29.9 x 14.4 inch
- Notes
- FM 88-108 MHz. Dial bearing CD-marks. 2 permanent dynamic front speakers, 2 lateral electrostatic speakers.
- Author
- Model page created by Sergio Giorgi. See "Data change" for further contributors.
