• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1975 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 90617

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

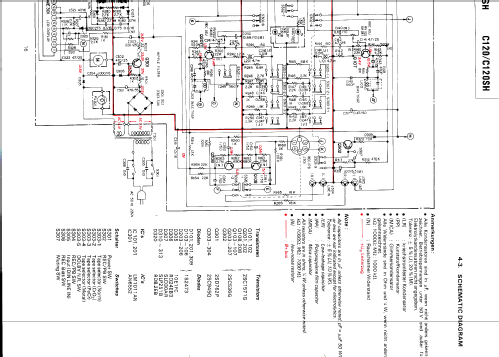

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: C120 - Wega, Württembergische Radio-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 110 x 270 mm / 16.9 x 4.3 x 10.6 inch

• Notes
• LED-Aussteueranzeige.

• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
