• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1969–1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 27757

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

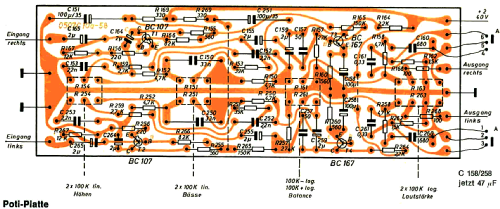

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 46

• Semiconductors
• BF200 BF121 AF201 BC168 BC107 BC169 BC167 BC177 BC110 40361 40362 2N3055 2N697

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Stereo-Bar 3300 Electronic 3300-2 - Wega, Württembergische Radio-

• Shape
• Console: Chairside Radio.

• Dimensions (WHD)
• 425 x 445 x 425 mm / 16.7 x 17.5 x 16.7 inch

• Notes
• Wega Stereo-Bar 3300 Electronic;
  HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 25 W (Sinus);
  Phono-Chassis = Dual 1209 mit Magnetsystem Shure M75MG-2D.
  Fahrbar, obere Einheit schwenkbar in Schleiflack, weiss oder orange oder anthrazit.
  Unterscheidungsmerkmal zum früheren und späteren Modell: 5 UKW-Stationstasten.

• Net weight (2.2 lb = 1 kg)
• 62 kg / 136 lb 9 oz (136.564 lb)

• Price in first year of sale
• 1,150.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1969/1970

• Mentioned in
• Handbuch VDRG 1970/1971 (HiFi Jahrbuch 5, G. Braun Verlag 1970, S. 711)

• Literature/Schematics (1)
• - - Manufacturers Literature (Wega, Produkt-Katalog 69-02)
