Fox Zwo 365 W-2

• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1950/1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3882

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

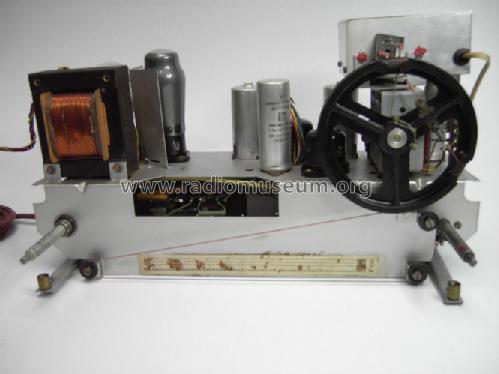

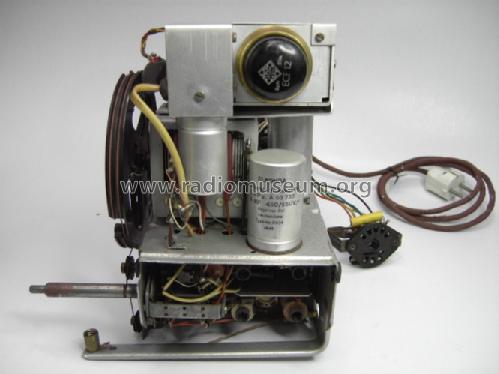

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH11 EBF11 ECL11 AZ11 EM11

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, Short wave.

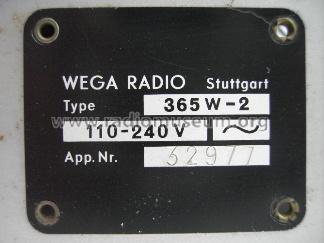

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 155; 220; 240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Fox Zwo 365 W-2 - Wega, Württembergische Radio-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 420 x 280 x 194 mm / 16.5 x 11 x 7.6 inch

• Net weight (2.2 lb = 1 kg)
• 8.7 kg / 19 lb 2.6 oz (19.163 lb)

• Price in first year of sale
• 225.00 DM

• Source of data
• Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch

• Mentioned in
• Funkschau (5016)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
