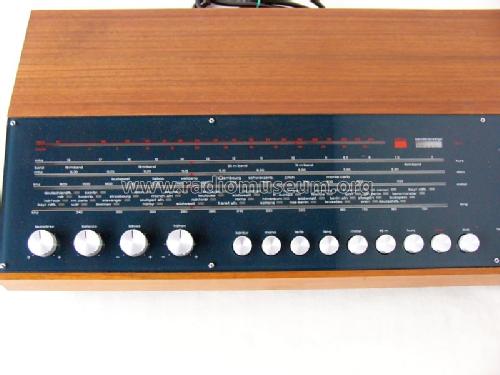

3105 HiFi Nussbaum
Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1968–1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 27465
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart
Aus Funkschau 1968 Heft 16
Q: Wega, Produkt-Katalog '70

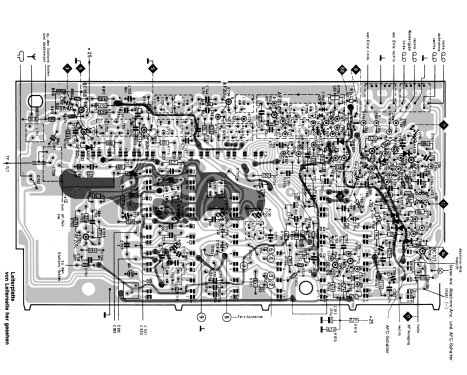

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 41
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 7 AM circuit(s) 14 FM circuit(s)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org

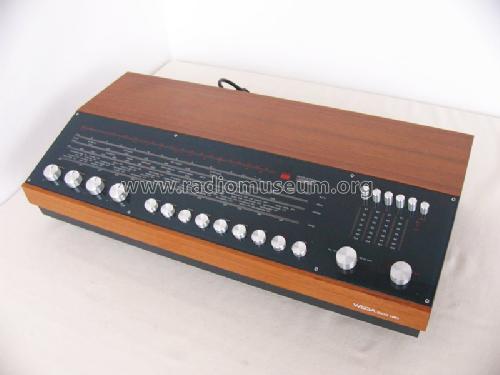

- Model: 3105 HiFi [Nussbaum] - Wega, Württembergische Radio-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 570 x 120 x 288 mm / 22.4 x 4.7 x 11.3 inch
- Notes
- HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 20 W (Sinus).
Gehäuse: Nussbaum. Siehe auch Variante in Teak, Palisander oder Schleiflack, weiss.
- Net weight (2.2 lb = 1 kg)
- 8.5 kg / 18 lb 11.6 oz (18.722 lb)
- Price in first year of sale
- 1,090.00 DM
- External source of data
- erb
- Source of data
- Handbuch VDRG 1968/1969
