- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1974–1976
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 29391
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart
Q: Wega Service
Interfunk Katalog 1976
Q: Wega, Produkt-Katalog '75

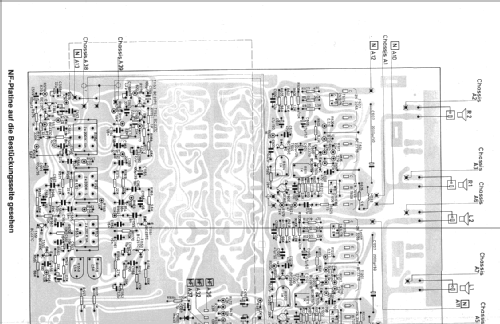

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 56
- Semiconductors
- TBA480 TCA420 TCA290 TCA440 µA739 SAS570 SAS570 SAS560 TCA530 2N3055 2N3055 2N3055 2N3055
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 17 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 50 W (80 W max.)
- Material
- Various materials
- from Radiomuseum.org

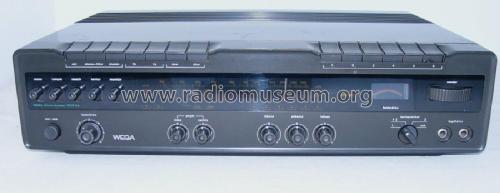

- Model: hifi 3130 - Wega, Württembergische Radio-
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 480 x 120 x 320 mm / 18.9 x 4.7 x 12.6 inch
- Notes
-
ICs: 9.
HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 25 W (Sinus).Gehäusefront, Front und Bodenplatte besteht aus Metall, Korpus aus Kunststoff
- Net weight (2.2 lb = 1 kg)
- 11.3 kg / 24 lb 14.2 oz (24.89 lb)
- External source of data
- Erb
- Source of data
- Katalog RFP 1974
- Mentioned in
- Handbuch VDRG 1975/1976
