• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1975/1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 134134

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

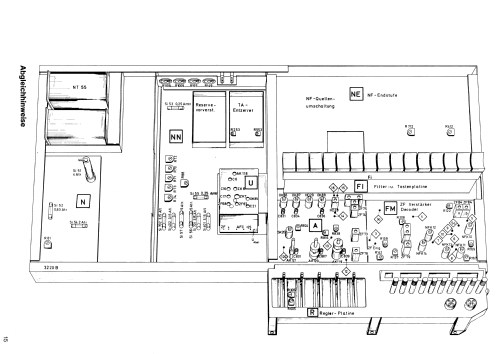

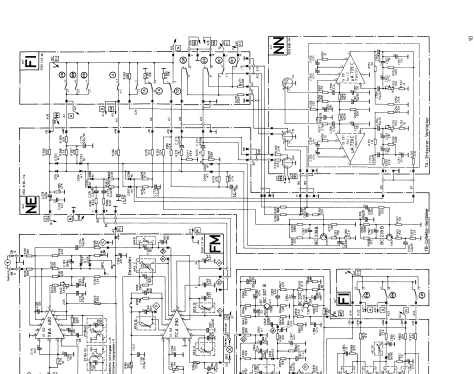

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 66

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     19 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 100 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

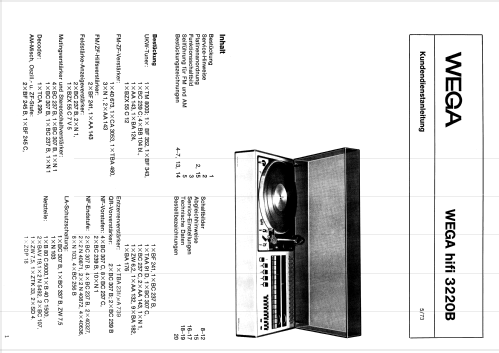

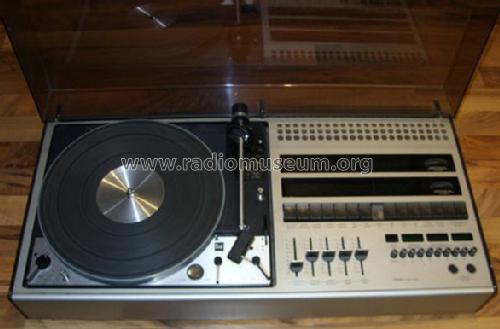

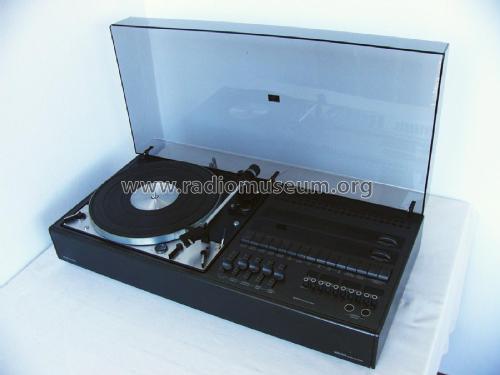

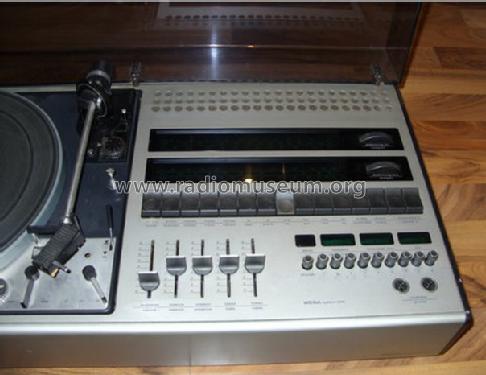

• Model: Studio 3220B HiFi - Wega, Württembergische Radio-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 740 x 185 x 355 mm / 29.1 x 7.3 x 14 inch

• Notes

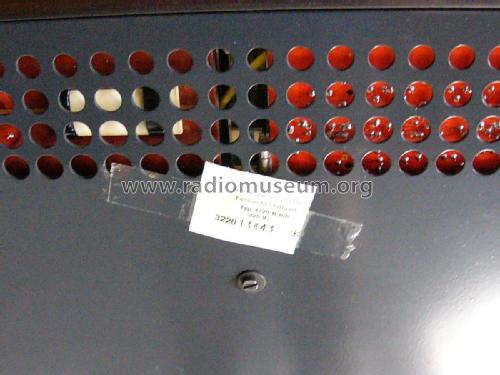

• HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 50 W; 9 Stationstasten; Phono-Chassis = Dual 1229 mit Magnetsystem Shure DM101M-G. Lieferbar in den Farben silber, weiß und anthrazit. 3220B ist das Nachfolgemodell der 3220, erkennbar an dem etwas geänderten Lochmuster über der Tunerskala (5 Reihen, Löcher vesetzt = 3220; 3 Reihen, Löcher übereinander = 3220B).

• Source of data
• Handbuch VDRG 1975/1976

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.

• Other Models

• Here you find 670 models, 596 with images and 392 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
