• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1978 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 275860

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

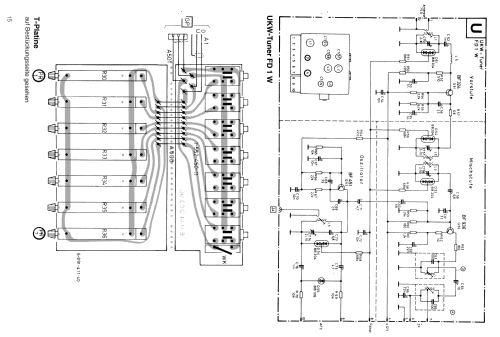

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors
• SAA1070

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: HiFi Tuner Modul 42 T - Wega, Württembergische Radio-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 360 x 150 x 260 mm / 14.2 x 5.9 x 10.2 inch

• Notes

• HiFi-Stereo-Tuner.
  Gehäusefarbe: schwarz oder hellgrau.  Tuner der Modul 42-Serie von Wega.

  Das Gerät verwendet spezielle Oberflächenwellen-Filter zur Verbesserung der Selektionsfähigkeit. Die Abstimmung erfolgt mit einem konventionellen Drehkondensator.

  Tuning Bands: FM, MW, LW, Tuning Scale: Digital
  FM Tuning Range: 87.5 to 108 MHz
  MW Tuning Range: 510 to 1640 kHz
  LW Tuning Range: 145 to 350 kHz
  Sensitivity: 1.2uV (FM), 15uV (MW), 25uV (LW)
  Signal to Noise Ratio: 64dB (FM)
  Distortion: 0.25% (FM)
  Output: 750mV (FM)
  Power Consumption 28 Watts
