Jubilar 465W-1

• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 3876

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

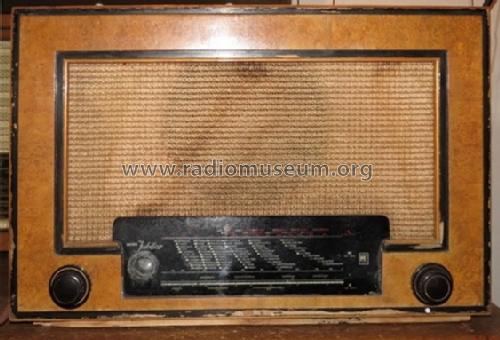

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

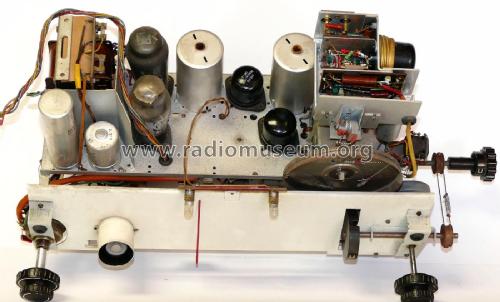

• Number of Tubes
• 5

• Valves / Tubes
• ECH11 EBF11 ECL11 AZ11 EM11

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

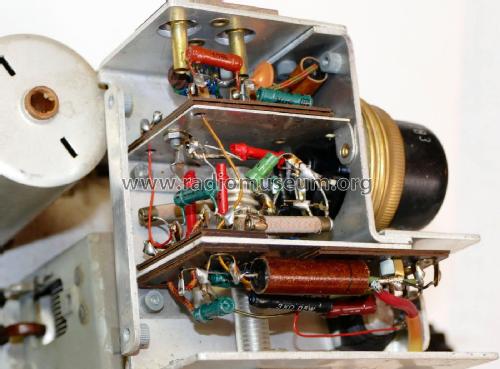

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Jubilar 465W-1 - Wega, Württembergische Radio-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 360 x 250 mm / 21.7 x 14.2 x 9.8 inch

• Net weight (2.2 lb = 1 kg)
• 12.5 kg / 27 lb 8.5 oz (27.533 lb)

• Price in first year of sale
• 425.00 DM

• Source of data
• Katalog Weide, 1949/50. / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Funkschau (4914)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
