- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1976/1977
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 134704
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart

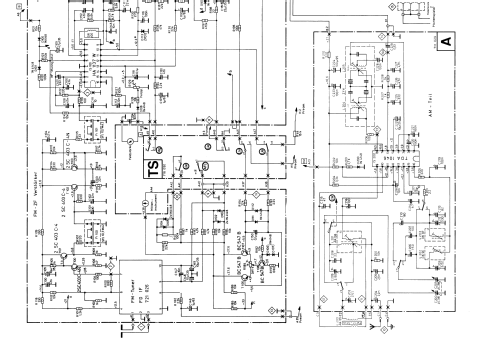

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 74
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Other Combination - see Notes
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 80 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: KS3341 - Wega, Württembergische Radio-
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 800 x 173 x 400 mm / 31.5 x 6.8 x 15.7 inch
- Notes
- ICs: 5; 2 Power-Packs.
Wega HiFi-Stereo-Kombination KS3341.
Ausgangsleistung: 2× 40 W (Sinus);
Phono-Chassis = Dual 1228 mit Magnetsystem M91MS-D, Frequenzumfang: 20···20000 Hz;
Cassetten-Recorder = Sony, Frequenzumfang: 30···15000 Hz (FeCr-Band).
- Source of data
- Handbuch VDRG 1976/1977
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
