- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1977/1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 125141
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart
Phora Katalog 1978

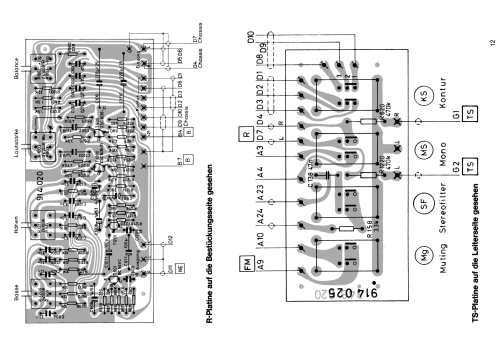

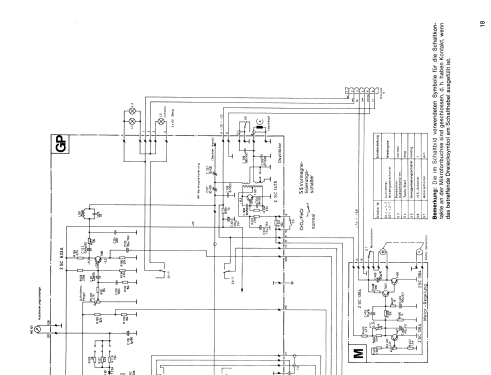

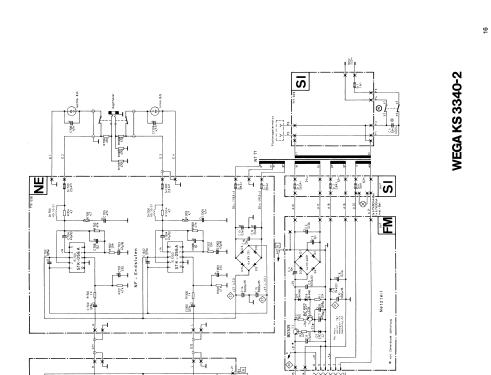

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 33
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Other Combination - see Notes
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- from Radiomuseum.org

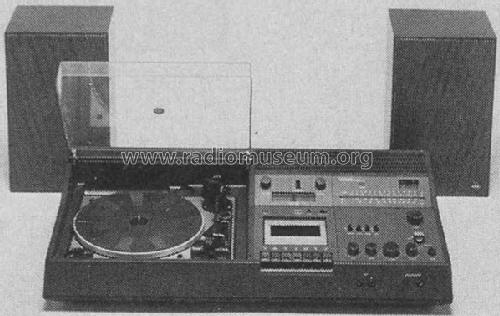

- Model: KS 3340-2 - Wega, Württembergische Radio-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 800 x 173 x 400 mm / 31.5 x 6.8 x 15.7 inch
- Notes
-
ICs: 3; 2 Power-packs.
HiFi-Stereo-Kombination mit einer Ausgangsleistung von 2× 30 W.
Gehäusefarbe: anthrazit oder stahlblau.Phono-Chassis = Dual 1237; HiFi-Stereo-Cassetten-Recorder.
Lautsprecher dazu: L354
- Source of data
- Handbuch VDRG 1977/1978
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
